ID 110 mm 32922 32022 30222 32222 30322 31322 32322 V1 V2 P6 P6X P5
Product Specification
| Basic dimension | Basic load rating | Limiting Speeds | Weight | Caculation factor | Bearing code |
| d | D | B | C | T | rmin | nmin | Cr | Cor | Grease | Oil | Wt | e | Y | Yo |
| mm | mm | mm | mm | mm | mm | mm | kN | kN | r/min | r/min | kg |
| 110 | 150 | 25 | 20 | 25 | 1.5 | 1.5 | 123 | 224 | 2200 | 2800 | 1.29 | 0.36 | 1.7 | 0.93 | 32922 |
| 170 | 38 | 29 | 38 | 2.5 | 2 | 213 | 379.1 | 1900 | 2600 | 2.985 | 0.43 | 1.4 | 0.77 | 32022 |
| 200 | 38 | 32 | 41 | 3 | 2.5 | 297.3 | 440.7 | 1700 | 2400 | 5.222 | 0.42 | 1.4 | 0.79 | 30222 |
| 200 | 53 | 46 | 56 | 3 | 2.5 | 465 | 695 | 1700 | 2400 | 7.62 | 0.42 | 1.4 | 0.79 | 32222 |
| 240 | 50 | 42 | 54.5 | 4 | 3 | 470 | 580 | 1600 | 2200 | 11.1 | 0.35 | 1.7 | 0.96 | 30322 |
| 240 | 57 | 38 | 63 | 4 | 3 | 470 | 605 | 1400 | 1900 | 12.3 | 0.83 | 0.73 | 0.4 | 31322 |
| 240 | 80 | 65 | 84.5 | 4 | 3 | 675 | 910 | 1500 | 2000 | 17.1 | 0.35 | 1.7 | 0.96 | 32322 |
Features
Tapered Roller Bearings are designed for using in a wide range of applications, including automotive, tractor, rolling mill, mining, metallurgical, plastic machinery,etc. This is a separable type of bearing. The inner ring (cone), along with the cage and rollers, is one assembly unit; the outer ring (cup) is the other assembly unit. This feature allows the bearings to be fitted separately and adjusted so that the optimum clearance or preload for each application is achieved.
Due to the inclined position of the tapered rollers, the contact lines between the rollers and raceways intersect at a common point on the axis of the bearing. The contact surfaces of the raceways and tapered rollers are modified to limit edge stresses. As a result of this modification and the large number of rollers, this bearing has high load-carrying capacity and is designed to carry axial and radial loads simultaneously. Since a single bearing of this type can only carry axial loads in one direction, the bearings are usually mounted in pairs.
DCM can produce high quality TRB as the customer requests.We are happy to produce further construction methods. Please do not hesitate to contact us for special bearing characters.We can also supply OEM service.
Application
Main Products

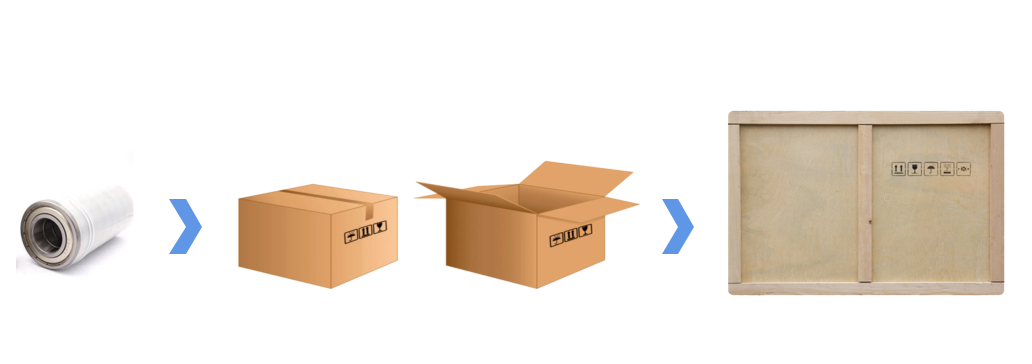

Packaging & Shipping
FAQ
Q1.Do you have MOQ?
Depends on different ideas, Can be negotiated.The larger the quantity is, the competitive the unit price will be.
Q2.Should the customer pay the delivery fee,How much is it?
For the delivery fee,many samples are be requested to be sent,so we must get delivery fee. If you tell me to use the appointed Express,you will give me your express account or you will pay according to the Express. If you do not request,I will choose a cheap one in China.
Q3.How about the after sale service?
1)We will always keep the quality the same as the buyer's samples and if there is something with the quality,we will make compensation for our customers.
2)We will suggest our packing and take charge in our packing,we will keep the goods safe in the delivery.
3)We will trace the goods from the production to selling,we will solve the problems in the selling for our customers.
Q4.When can I get a price?
We usually quote within 24 hours after we get your inquiry.
Q5: Are you a trade company or manufacturer?
We are a professional manufacturer with our own factory.
